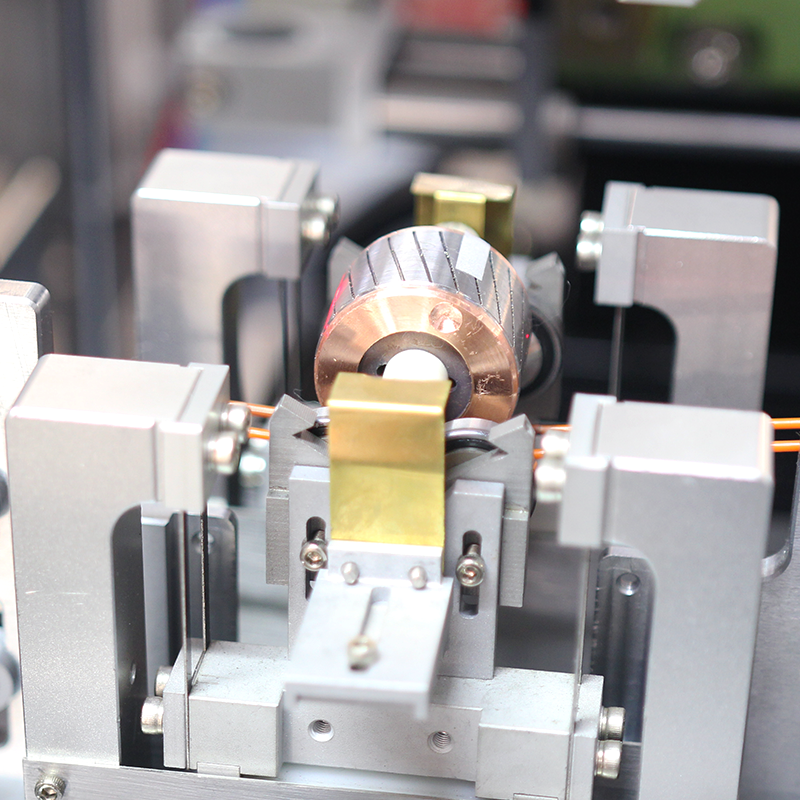

End Face Drilling Four Station Automatic Balancing Machines
1.Manual loading or unloading
2.12 inch touch screen
3.Advanced balancing software
4.Automatic measuring,drilling and retesting
5.Twice correction or more can be excuted by removing-weight
6.Rigid bed-structure design ensures long service life
2.12 inch touch screen
3.Advanced balancing software
4.Automatic measuring,drilling and retesting
5.Twice correction or more can be excuted by removing-weight
6.Rigid bed-structure design ensures long service life
- Technical Data
- Gallery
- Download
- Video
- Info Form
-
End Face Drilling Four Station Automatic Balancing MachinesTechnical data at a glance
A4WZ1 Max Weight of Workpiece (kg) 1.6 Max Diameter of Workpiece (mm)30-130 Journal Diameter (mm) φ5-16 Balancing Speed (r/min) ,≤2500Balancing Motor Power (kw)0.4 KW Servo MotorMin Achievable Residual Unbalance Amount (g.mm/kg)≤0.3Testing Time (second) 5-9 Reduction Rate of Unbalance≥90%Working Pressure (MPa) 0.4-0.6 Operating Voltage (V) AC: 380V external Milling Mode Drilling Take Time (second) 12-15 Drilling once on the left and right side Drilling Power (kw) 0.75 Average Machine Consumption(l/min) 50 Balancing Machine Type Soft Bearing Measuring Bracket Machine Total Power (kw) 9.5 Protection Phase Sequence Protection, Overload Protection, Air Pressure Monitoring
