50kg Belt Drive Balancing Machines

  • Specially designed brackets transmit mechanical force with low vibration damping
  • Durable and reliable sensor possesses good linearity
  • Permanent calibration brings high accuracy with a permission of large initial unbalance amount
  • Belt-driving offers higher precision and easier operation
  • Advanced electrical measuring system and friendly man-machine interface
  • Modular design offers a wide range of application
  • Technical Data

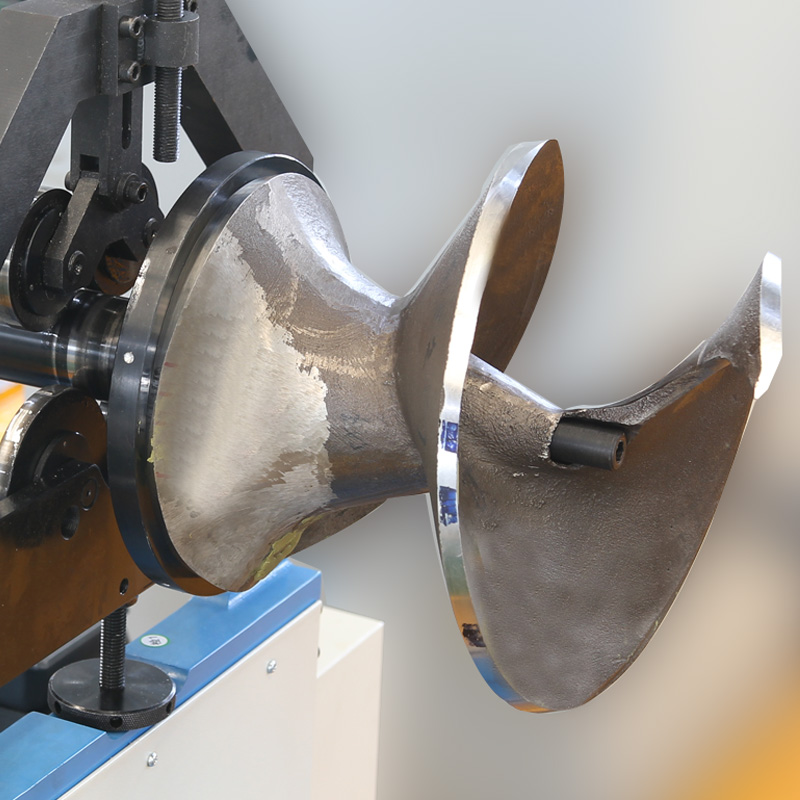

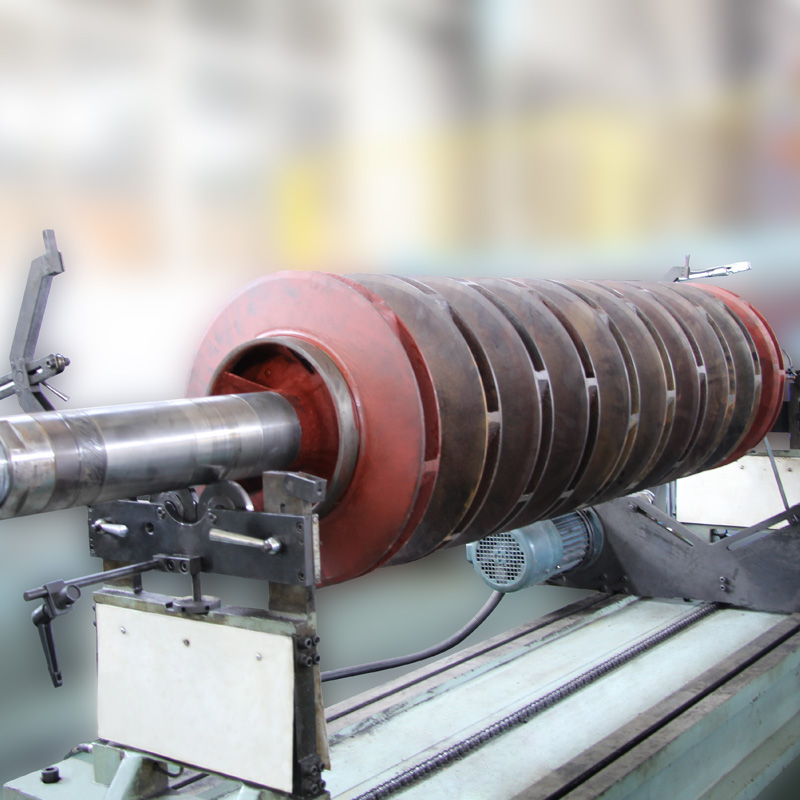

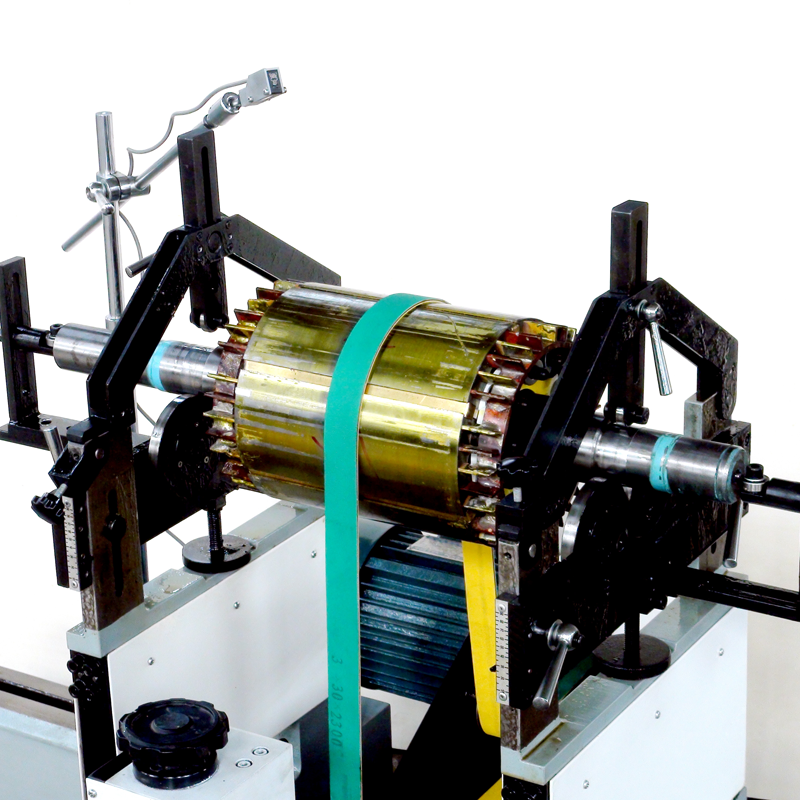

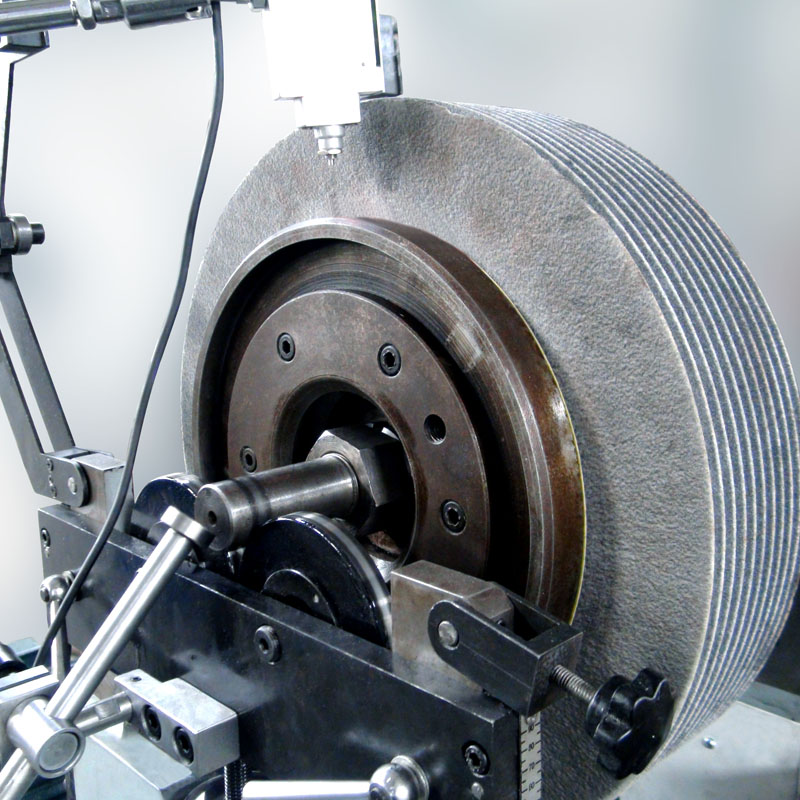

  • Gallery
  • Download
  • Video
  • Info Form
  • Applicable to medium workpieces

    Technical data at a glance PHQ-50
    Max Mass of Workpiece(kg) 50
    Max Diameter of Workpiece (mm) Φ700
    Distance Between Two Support Bearings (mm) 80~700
    Journal Diameter Scope of Workpiece (mm) Φ 8~80
    Diameter Scope of Driving Belt (mm) Φ18~200
    Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)  700,10501)
    Motor Power (kw) 0.752)
    Length of Bed (mm)
    Min Achievable Residual Unbalance Amount (emar) ≤0.15g· mm/kg





    1) Stepless speed regulation
    2) Frequency conversion
    3) Can add to 75-180
    4Can add to 120-240
