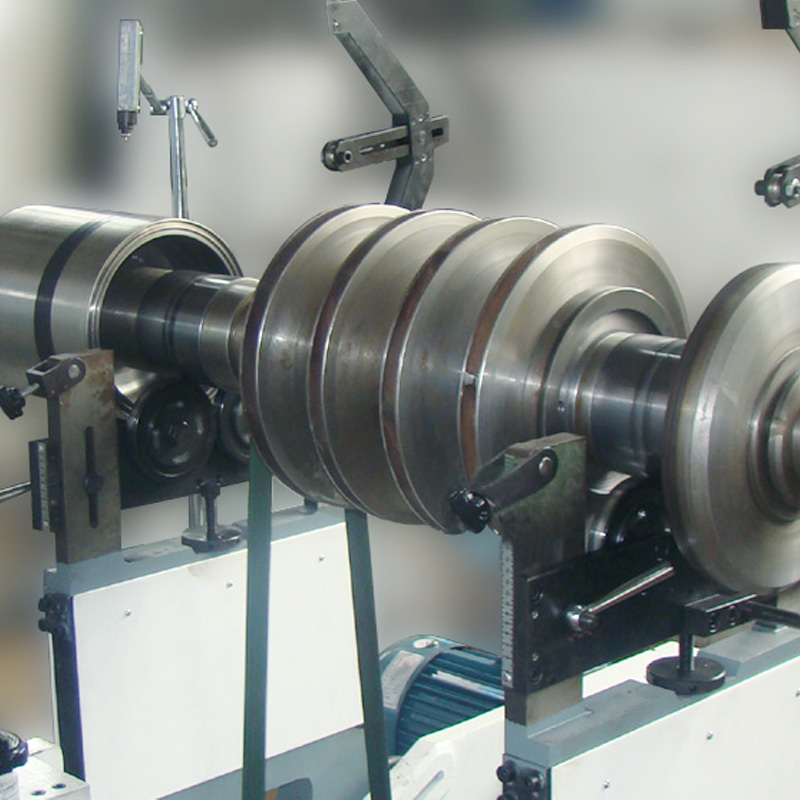

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

Applicable to large workpieces

Technical data at a glance	PHQ-5000H	PHQ-10000	PHQ-15000	PHQ-20000
Max Mass of Workpiece(kg)	5000	10000	15000	20000
Max Diameter of Workpiece (mm)	Φ2400	Φ2400	Φ2800	Φ2800
Distance Between Two Support Bearings (mm)	500~2200	750~4600	750~5600	750~5600
Journal Diameter Scope of Workpiece (mm)	Φ 40~380	Φ60~400	Φ60~400	Φ60~400
Diameter Scope of Driving Belt (mm)	Φ50~1000	Φ50~1000	Φ100~1300	Φ100~1300
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)	795,1853¹⁾	795,1853¹⁾	795,1853¹⁾	795,1853¹⁾
Motor Power (kw)	15²⁾	18.5²⁾	30²⁾	30²⁾
Length of Bed (mm)	2500	2500	2500	2500
Min Achievable Residual Unbalance Amount (emar)	≤0.5g· mm/kg	≤0.5g· mm/kg	≤0.5g· mm/kg	≤0.5g· mm/kg
