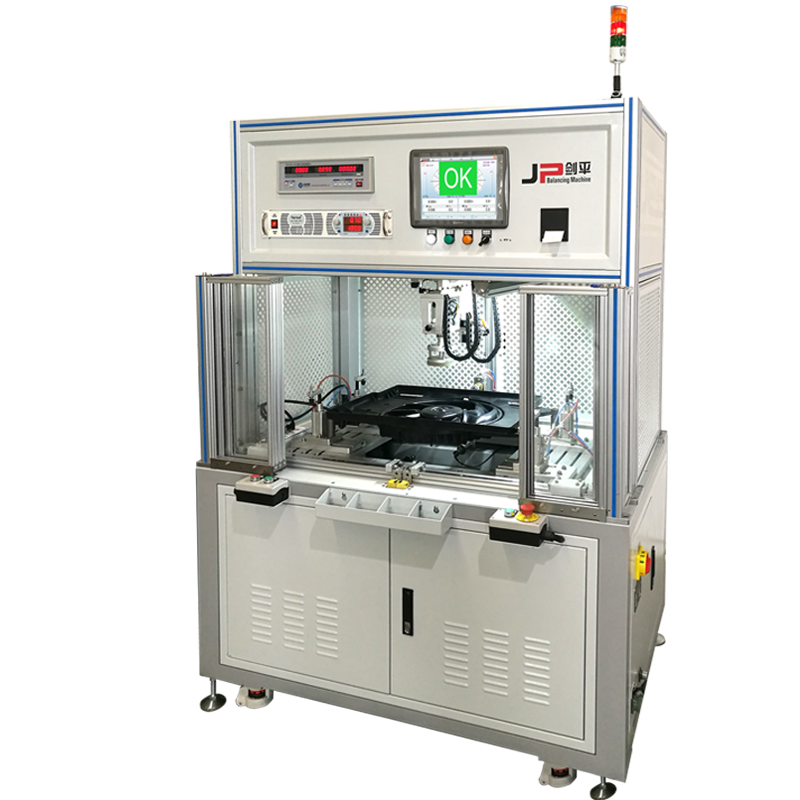

Mainly used in the whole balancing of automotive air conditioning cooling fan .water tank cooling fan assembly
The machine uses 12-inch touch screen, and powerful JP800 balancing software.
It can not only measure balancing . But also test the current, voltage, power and other electrical parameters.
Versatile fixture can accommodate variety of workpieces, pneumatic quick chuck can clamp the workpiece more quickly, greatly improve efficiency

Technical data at a glance	PRZD-5H
Max Mass of Workpiece(kg)	5
Maximum Workpiece Frame Size(mm)	900*700
Balancing Speed(r/min)	1500-5000
Min Achievable Residual Unbalance Amount (emar)	1g· mm/kg
Unbalance Reduction Rate(%)	≥90
Electrical Parameters Measuring Number Instrument	Voltage 1-300v, Current 0.02-50A, Power factor 0.05 Frequency 45-65HZ (AC
Working Pressure	0.4-0.6Mpa
Working Voltage	AC380V
Security	Automatic door
Software Interface	12 inch touch screen
Dimensions	L1900H1720W790mm
Optional Function	Electric function test vibration and deflection test functions
