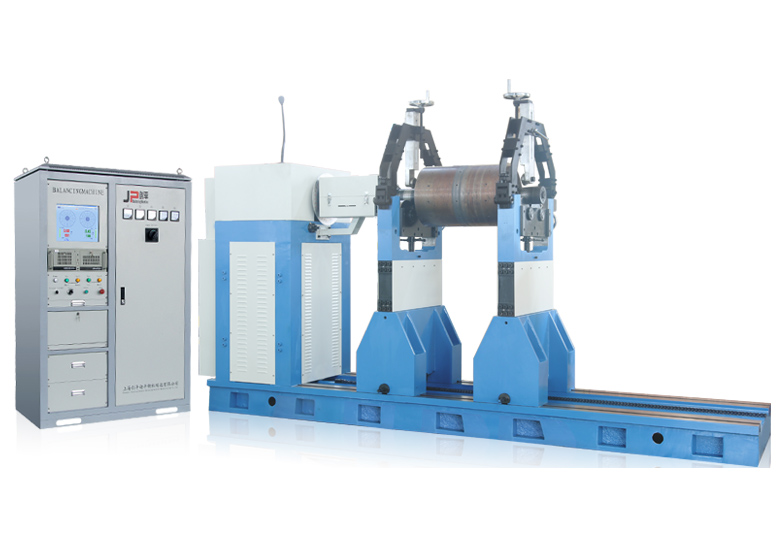

10000kg Universal Joint Drive Balancing Machines

1. Special designed brackets can effectively transmit mechanical force
2. The durable and reliable sensor possesses high sensitivity
3. The permanent calibration brings high accuracy
4. Driven by universal coupling,transmit the power steadily
5. Applicable to rotors which can't be driven by belt or need large power
6. Advanced electrical measuring system and friendly man-machine interface
  • Technical Data
  • Gallery
  • Download
  • Video
  • Info Form

  • Applicable to Large workpieces

    Technical data at a glance PHW-10000H
    Mass Scope of Workpiece(kg) 10000
    Max Diameter of Workpiece(mm) Φ2400
    Distance Between Two Support Bearings(mm) Min 320
    Journal Diameter Scope of Workpiece(mm) Φ60~400
    Max Distance between Driving Flange and Right Bearing Support (mm) 4000
    Rotational Speed of the Main Axis(r/min) Stepless speed
    regulation
    Motor Power (kw) 221)
    Torque of Universal Joint Shaft(N·m) 2250
    Length of Bed (mm) 5500
    Min Achievable Residual Unbalance Amount(emar) ≤0.5g· mm/kg
    1) Frequency conversion
    2) Can add to 75-180
    3)Can add to 120~240
    4)    Stepless speed regulation
